Atlas Orion 2x Anamorphic 7-Lens Set
| Lens | T-Stop | Close Focus | Front Diameter | Mount | Format | Weight |
|---|---|---|---|---|---|---|
| 25mm | T2 | 1'6" | 136mm | PL | Super35 | 6.42 lbs |

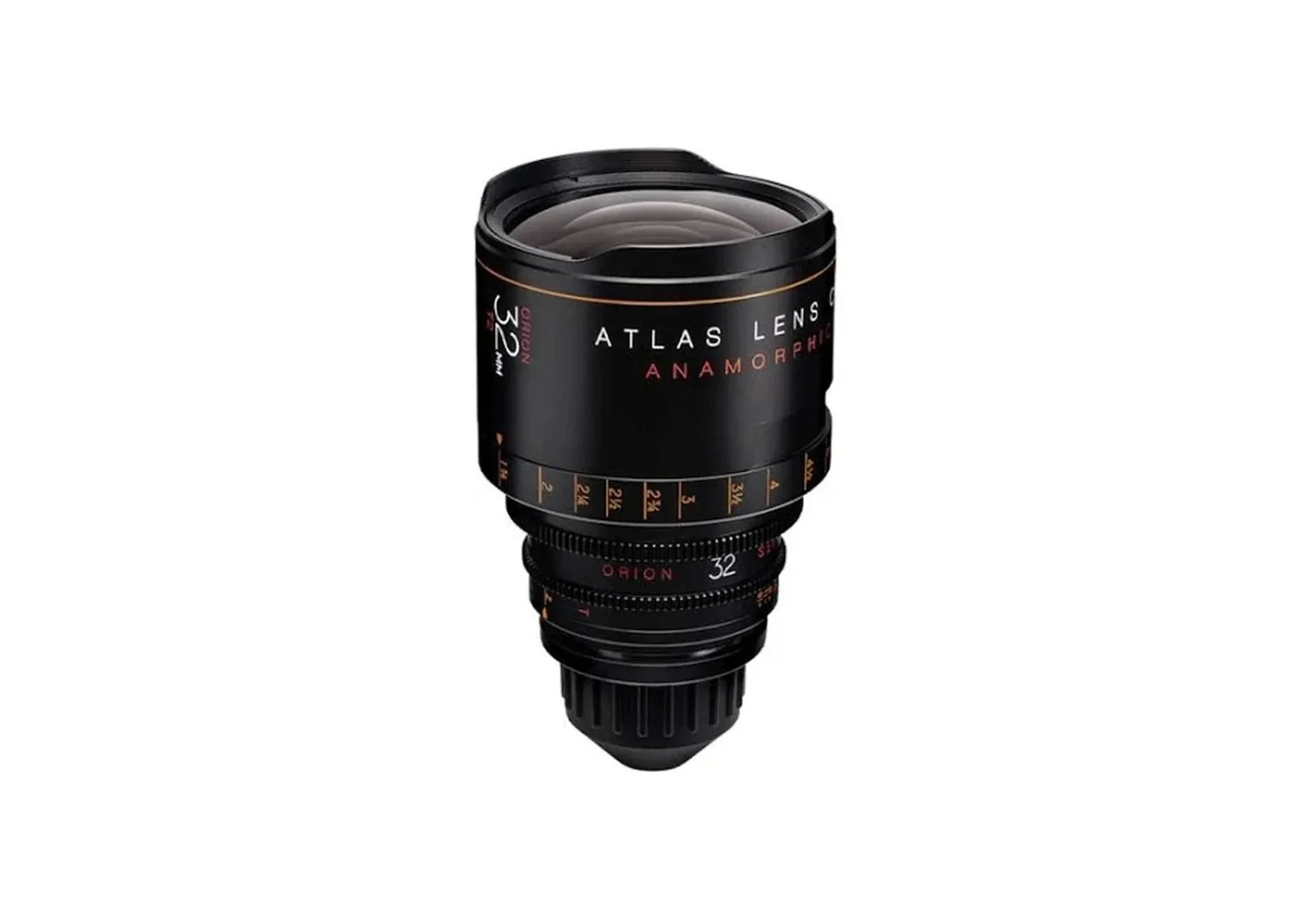

| 32mm | T2 | 1'9" | 114mm | PL | Super35 | 4.70 lbs |
| 40mm | T2 | 2' | 114mm | PL | Super35 | 5.20 lbs |

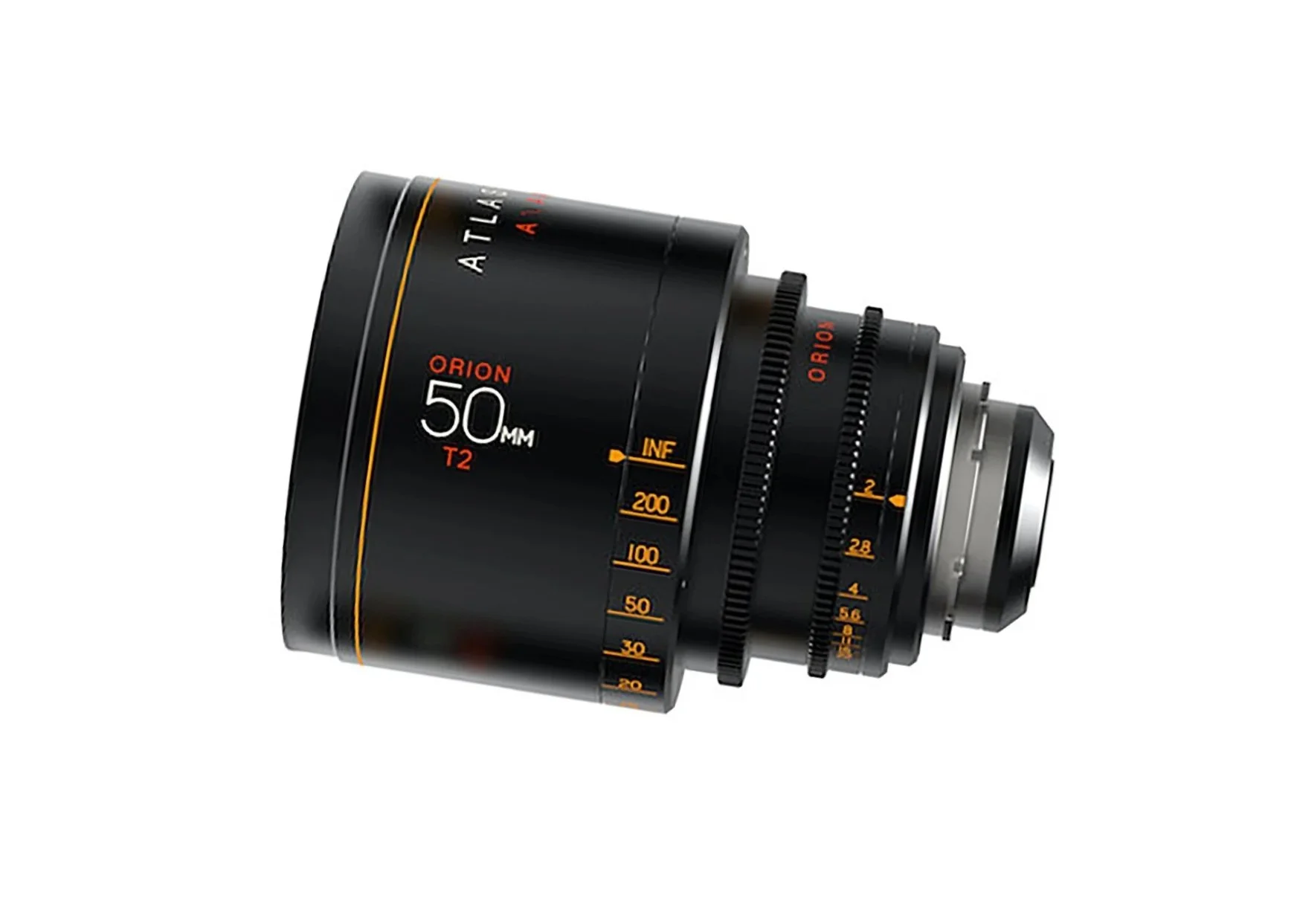

| 50mm | T2 | 2'6" | 114mm | PL | Super35 | 5.00 lbs |
| 65mm | T2 | 2'9" | 114mm | PL | Super35 | 5.00 lbs |

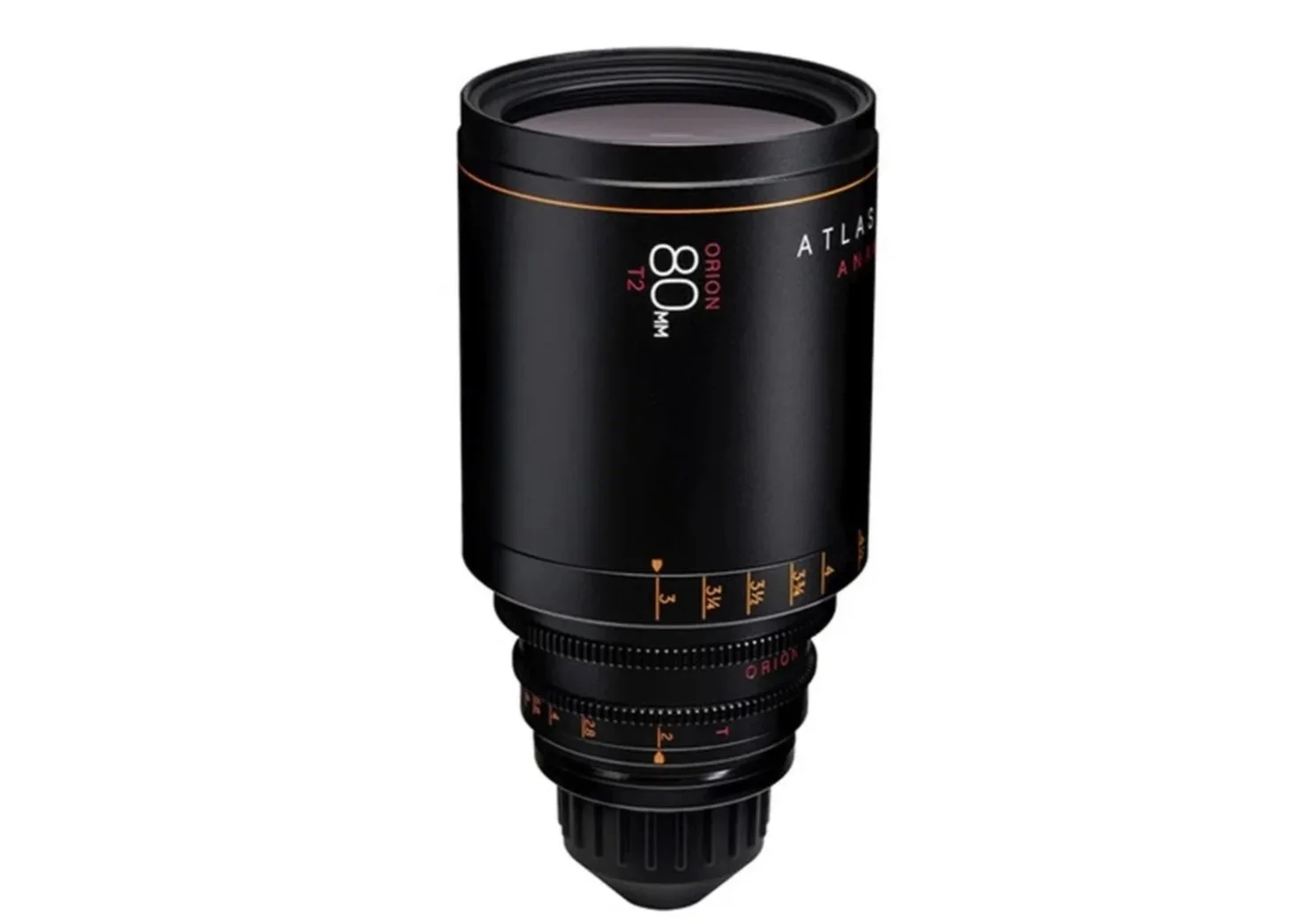

| 80mm | T2 | 3' | 114mm | PL | Super35 | 6.00 lbs |
| 100mm | T2 | 3'6" | 114mm | PL | Super35 | 6.70 lbs |
Atlas 1.6x LF Extender
The Atlas LF Extender allows Orion Series lenses to provide edge to edge coverage on larger than S35 formats - If used with 35mm format (non FF/LF sensor), it extends your lenses by 1.6x (100 becomes 160, 80 becomes 127, etc.)
The @atlaslensco Orion 2x Anamorphic Primes occupy modern, robust housings and deliver a look often characterized by vintage anamorphics. Their uniform front diameters and lens gears allow for quick lens changes! These primes can be adapted for PL or EF use with their interchangeable lens mount system. While the Orions typically cover S35 sensors, the Atlas 1.6x LF Extender enables full-frame coverage with only 1 and 1/3 stop light loss.
Interchangeable Mount System with native PL or EF mount options
Works with E-mount or Micro 4/3 camera with appropriate adapters
Covers full-frame (FF), large format (LF) or Vistavision with our 1.6x LF Extender
Focus has a deep 270° travel rotation
Cine pitch 0.8 mod gearing on both iris and focus ring allow for simultaneous drive control, even when two motors are mounted on the same side of the lens
